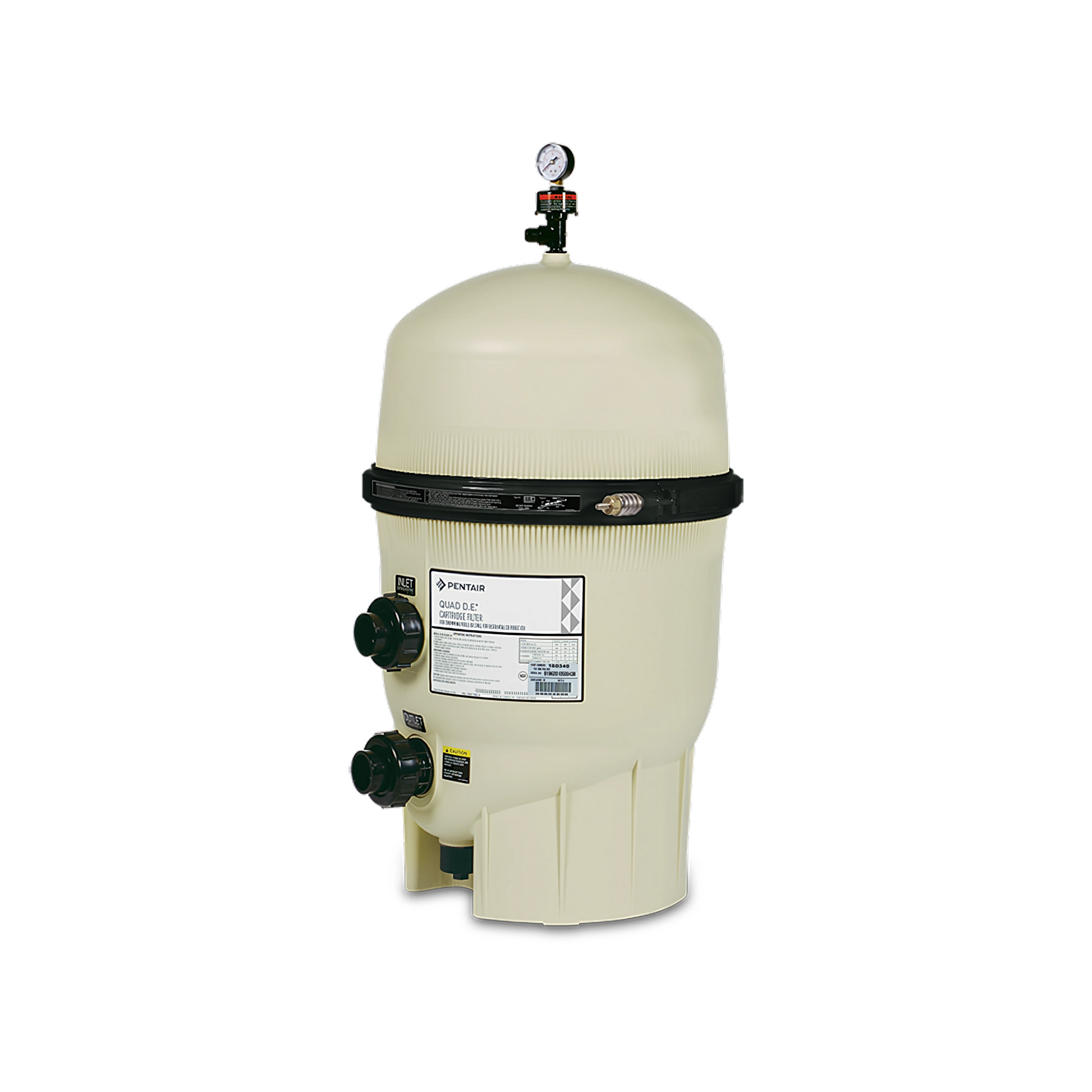

Quad D.E.® Filters
Cartridge-Style Filter
The Quad D.E.® Filters combine premium diatomaceous-earth filtration with the convenience of a cartridge system. Four large-capacity, easily removable cartridges trap more dirt for longer run-times and simplify cleaning—just rinse and pop back in.
Featured Highlights
-
Four large-capacity cartridges provide maximum filter surface area for greater dirt-trapping capacity and longer periods between cleanings
-
Chemical-resistant, fiberglass-reinforced polypropylene tank for exceptional strength and longer life
-
Easily removable cartridge elements make maintenance fast and tool-free
-
Efficient water flow may assist your pump in using less energy
Integrated continuous High Flow™ internal air relief is operational only when there is unobstructed flow in the circulating system.
Models & Specs:
Model | Area (sq. ft.) | Flow Rate (GPM) | Turnover (8 hr / 10 hr / 12 hr) (gal) | D.E. Required (lbs.) | Carton Qty. | Carton Wt. (lbs.) |
---|---|---|---|---|---|---|
188592 | 60 | 120 | 57,600 / 72,000 / 86,400 | 6.0 | 1 | 70 |
188593 | 80 | 160 | 76,800 / 96,000 / 115,200 | 8.0 | 1 | 80 |
188594 | 100 | 160 | 76,800 / 96,000 / 115,200 | 10.0 | 1 | 90 |
Dimensions:
Vertical clearance to remove cartridges: 15 ½″ above the unit
Base footprint: 21 ½″ diameter
Safety & Compliance Notes:
California Proposition 65 Warning:
This product may expose you to chemicals known to the State of California to cause cancer or reproductive harm. For details, visit www.P65Warnings.ca.gov.
Installation Warning:
Must be installed by a qualified pool professional. Improper installation can result in severe injury or property damage due to high pressure or improper chemical exposure.
Maintenance Caution:
Always release system pressure and disconnect power before servicing. Never open filter while system is running or pressurized.
