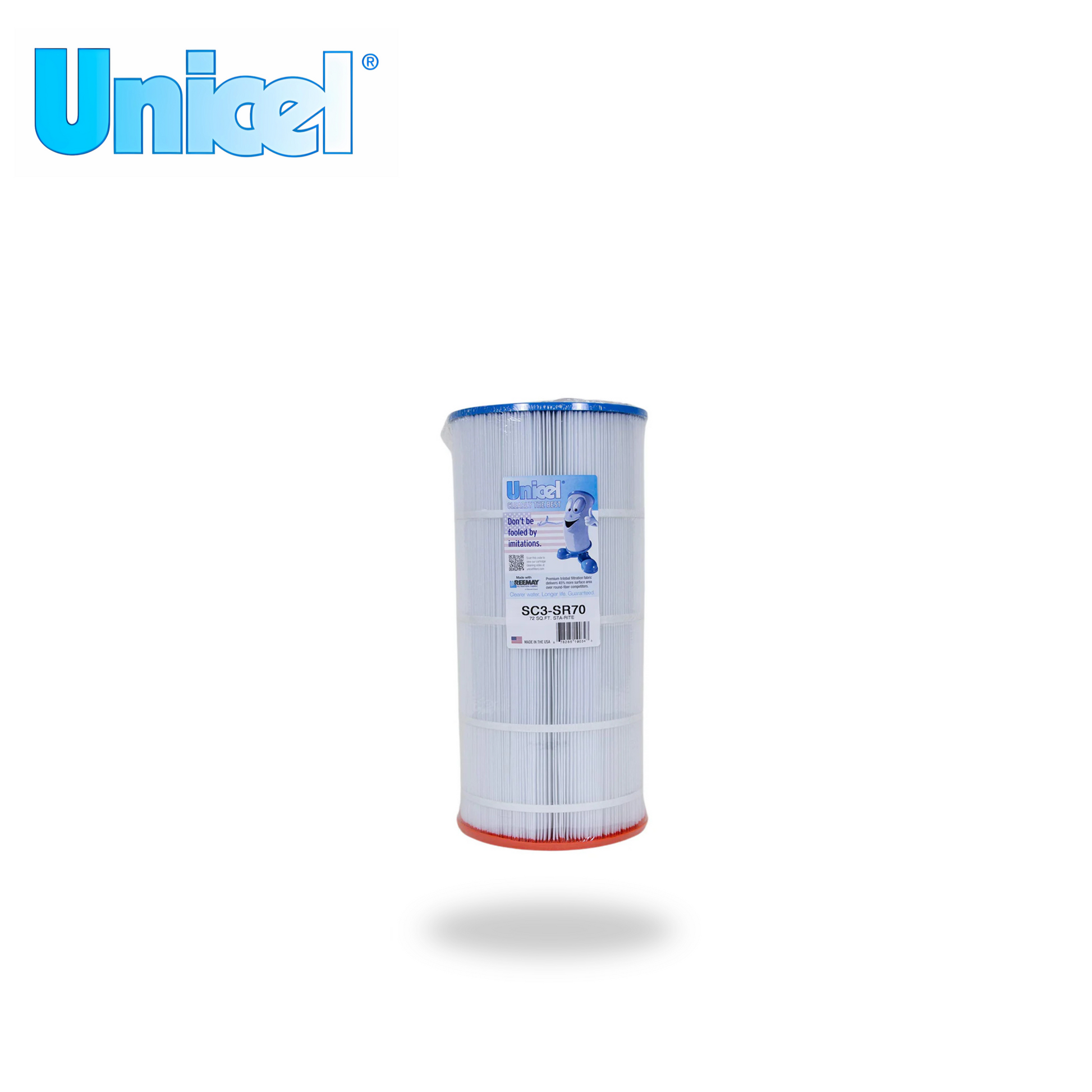

Unicel® SC3-SR70 Replacement Filter Cartridge – 72 Sq Ft
Unicel® SC3-SR70 Replacement Filter Cartridge – 72 Sq Ft
Couldn't load pickup availability
Fits Sta-Rite 70TX, 70GPM-TX, 70TXR, T-70TX, T-70TXR & PTM70
Think of the SC3-SR70 as the high-performance coffee filter of the pool world—it traps dirt down to ~20 microns on the very first pass and keeps on going for longer run times between cleanings. With 195 pleats and 72 sq ft of rugged, 3-oz polyester media, this cartridge delivers crystal-clear water without the elbow grease.
Key Features
-

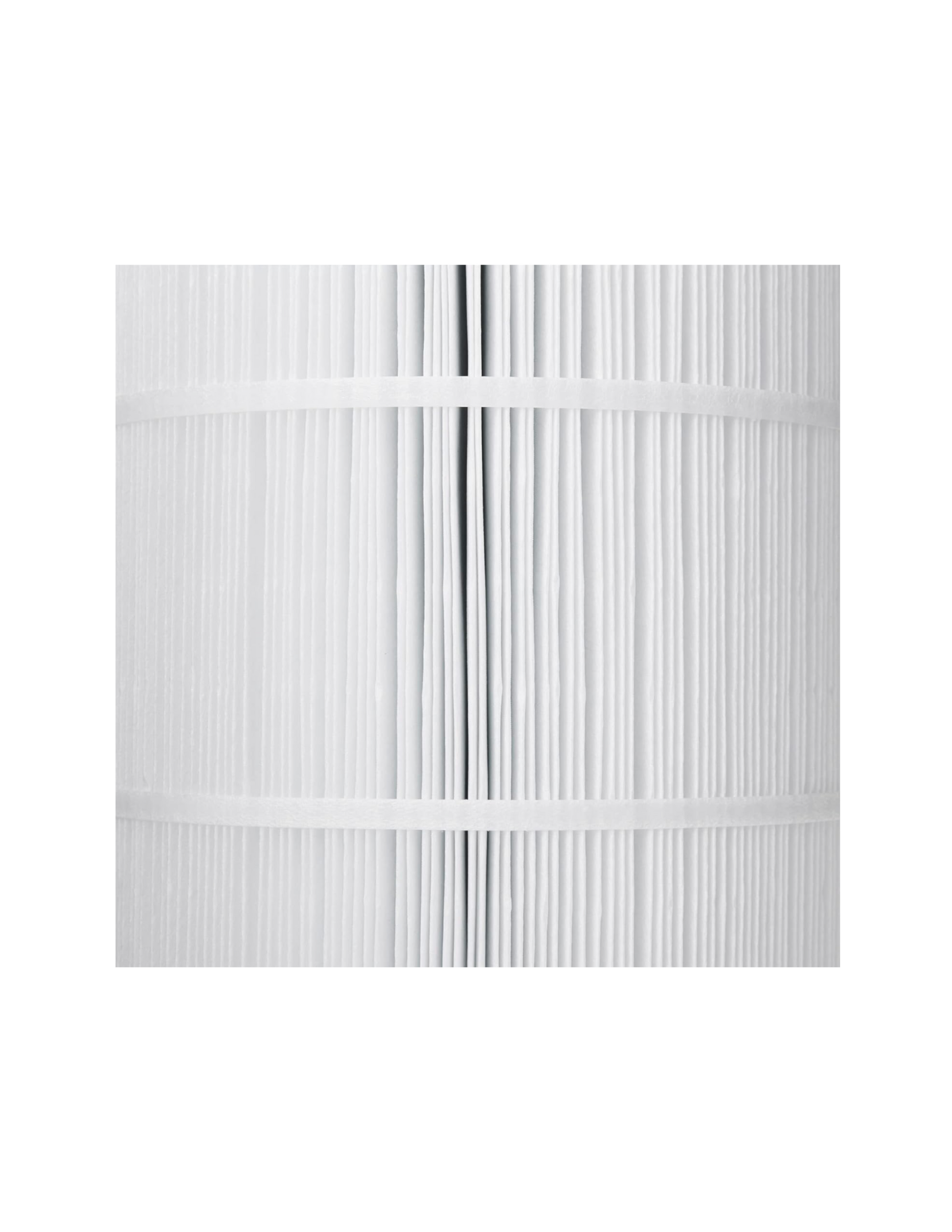

195 Pleats maximize surface area for extended filter cycles.
-
72 sq ft of 3-oz basis-weight Reemay® media for massive dirt-holding capacity.
-
~20 Micron Rating captures fine debris (dust, algae, pollen) on the first pass.
-

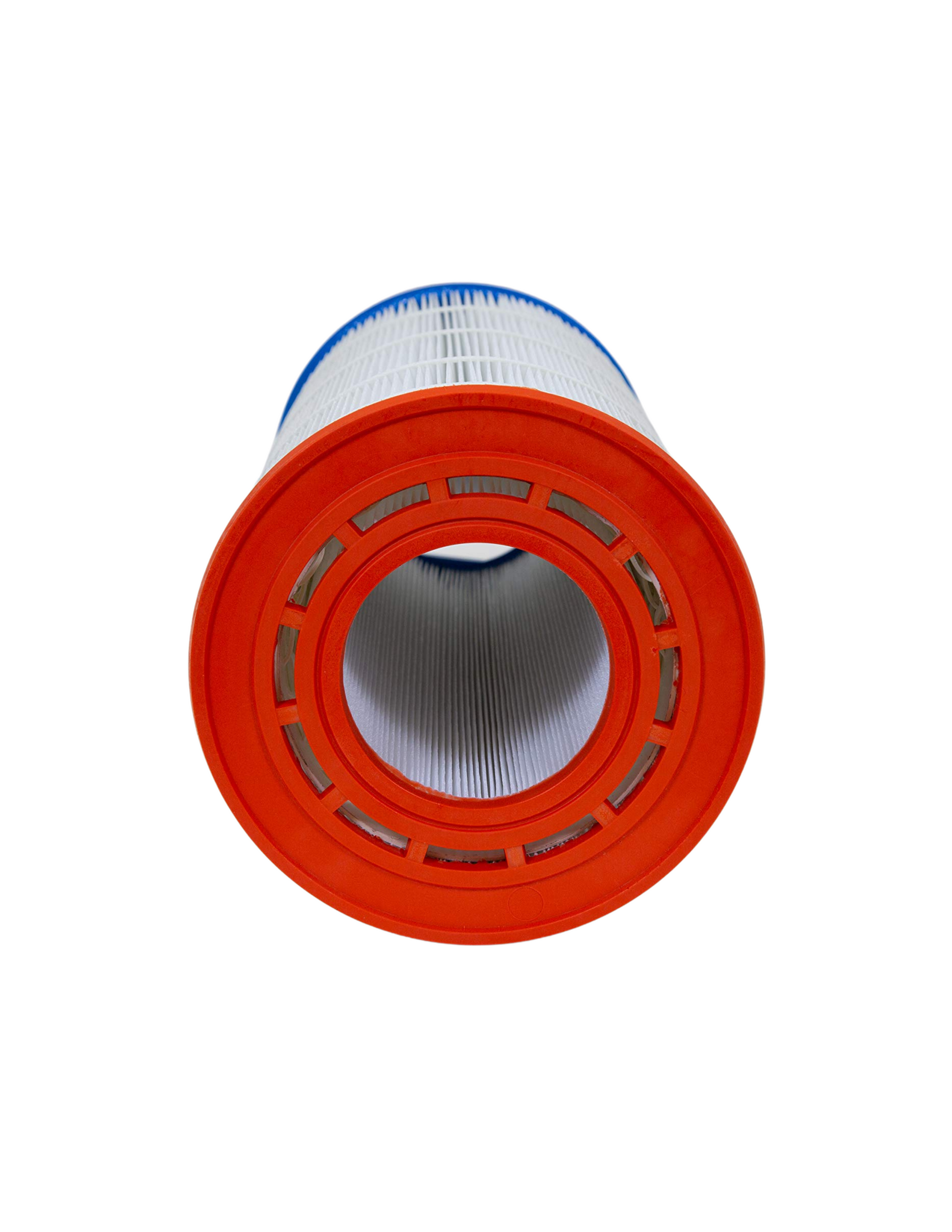

Open End Caps (4-3/16″ ID) top and bottom—blue on top, orange on bottom—for a perfect seal.
-
Durable Construction resists tearing through repeated cleanings and acid soaks
Specifications
| Specification | Detail |
|---|---|
| Media Area | 72 sq ft |
| Pleat Count | 195 |
| Media Weight | 3-oz spun-bonded polyester |
| Micron Rating | ~20 µm |
| Length (OAL) | 18 3⁄16″ (18.1875″) |
| Outer Diameter | 8 11⁄16″ (8.6875″) |
| Top Cap ID | 4 3⁄16″ (open) |
| Bottom Cap ID | 4 3⁄16″ (open w/ 12 slots) |
| Product Weight | ~4.7 lbs |
Dimensions & pleat count sourced from Unicel and retail listings
Maintenance & Safety Tips
-
🔧 Power Down & Relieve Pressure: Always shut off your pump and bleed system pressure before changing cartridges.
-
📈 Monitor Gauge: Replace when pressure climbs 8–10 psi above clean-start levels.
-
🗓️ Seasonal Swap: In most climates, swapping once per season keeps flow high and energy use low.
-
🚿 Rinse, Don’t Soak: A thorough garden-hose rinse between seasons extends life—skip harsh chemicals.
