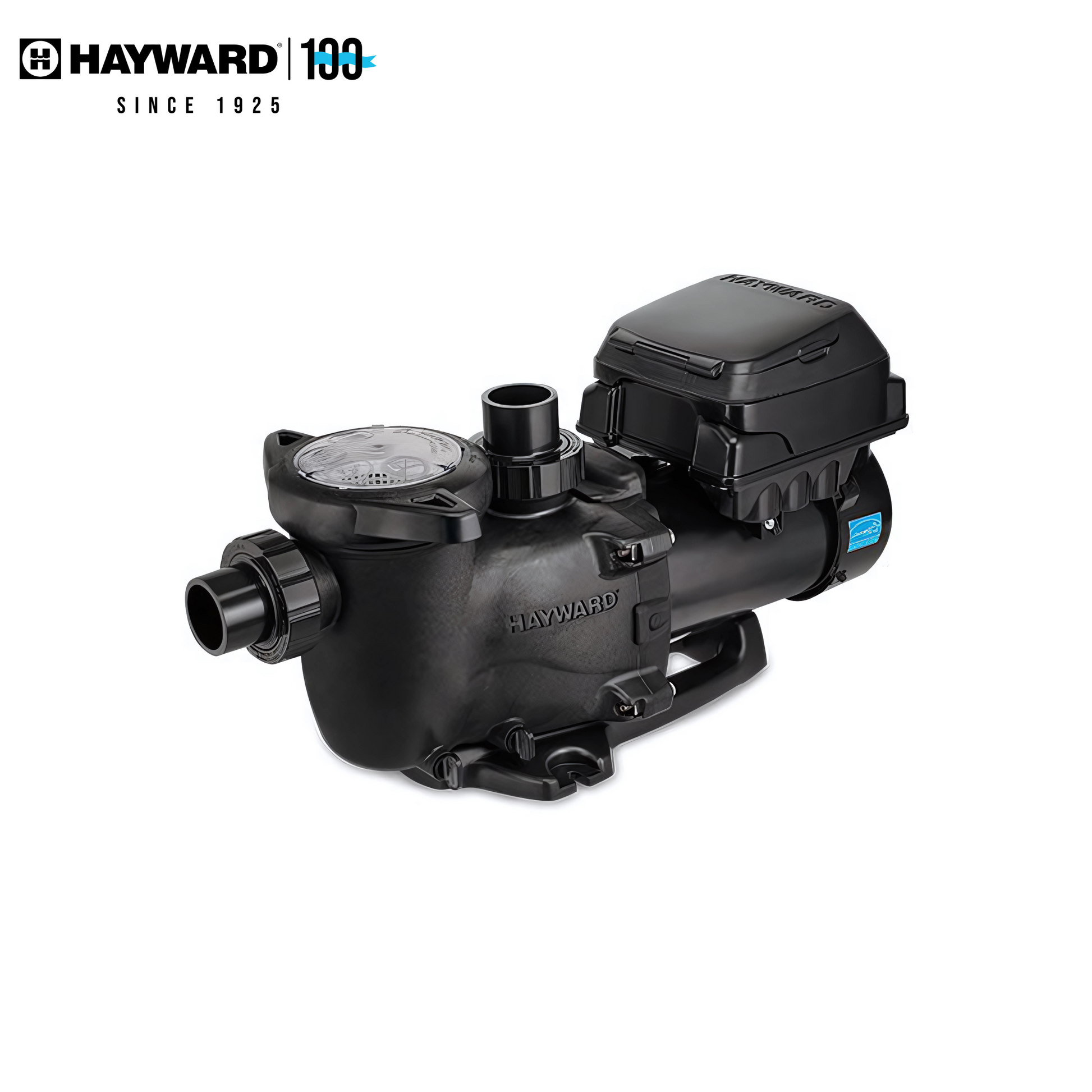

Hayward® MaxFlo VS 500 Variable-Speed Pump
Hayward® MaxFlo VS 500 Variable-Speed Pump
Couldn't load pickup availability
For delivery out side Tampa?
Fully Programmable, Dual-Voltage Variable-Speed Pool Pump
The Hayward® MaxFlo VS 500 (Model SP23520VSP) is a fully programmable, dual-voltage (115/230 V) variable-speed pump featuring a high-performance permanent-magnet motor and totally enclosed fan-cooled (TEFC) drive. Designed as a drop-in upgrade for in-ground pools, it optimizes flow rates and run times for maximum efficiency and performance across all pool functions.
Features (Why You’ll Love It)
- Energy Savings: Achieve up to 80% lower annual operating costs compared to single-speed pumps by tailoring speed to the pool's needs.
- Ultra-Quiet Operation: The whisper-quiet TEFC permanent-magnet motor ensures a peaceful poolside environment.
- Custom Scheduling: Features a 24-hour clock with 8 programmable speed and time settings for ultimate flexibility and automation.
- Durable Sealing: Equipped with an extended-life Viton® seal that offers improved resistance to pool chemicals, enhancing longevity.
- Intuitive Control Pad: The rotatable control pad can be oriented for on-pump access or wall-mounted for convenient operation.
Key features and operational notes for the Hayward® MaxFlo VS 500 Pump:
- Variable-Speed Efficiency: Allows for precise adjustment of pump speed to match tasks like filtration, heating, cleaning, or powering water features, significantly reducing energy consumption.
- Permanent Magnet Motor: Delivers higher efficiency and reliability than traditional induction motors.
- TEFC Design: The totally enclosed fan-cooled motor is protected from harsh weather and debris, contributing to a longer service life.
- Programmable Interface: The on-board digital control panel allows users to easily set multiple custom speeds and operating schedules throughout the day.
- Drop-In Upgrade: Designed for easy installation as a replacement for many existing single-speed pumps, often with minimal plumbing adjustments.
- Dual Voltage Capability: Can be wired for either 115V or 230V power supply, offering installation flexibility.
Key Specifications
| Feature | Specification |
|---|---|
| Model | SP23520VSP |
| Rated HP / Hydraulic HP | 1.65 HP / 0.559 HHP |
| Voltage | 115V / 230V (Dual Voltage) |
| WEF (kgal/kWh) | 10.7 (at 115V) / 10.2 (at 230V) |
| Max Flow Rate | 120 GPM (Gallons Per Minute) |
| Plumbing Connections | 1½″ × 2″ Unions (typically provides 1.5" FPT and 2" Slip options) |
| Motor Type | Permanent-Magnet, TEFC (Totally Enclosed Fan-Cooled) |
| Pump Seal | Viton® |
| Control Interface | 8-segment programmable digital pad |
| Weight | 45 lb |
Performance at Common Speeds
| Speed Setting | RPM (Approx.) | Flow (GPM Approx.) |
|---|---|---|
| Low | 1,000 | ~ 30 |
| Medium | 1,725 | ~ 60 |
| High | 3,450 | ~ 120 |
- Pump Type: Variable Speed In-ground Pool Pump.
- Housing Material: Durable, corrosion-resistant thermoplastic.
Manufacturer Warranty
This Hayward® MaxFlo VS 500 Variable-Speed Pump is covered by a Hayward limited manufacturer's warranty. When professionally installed by a qualified technician and registered with Hayward within 60 days of installation, the warranty is 3 years parts-only.
- Covered: Manufacturing defects in materials & workmanship under normal use and service.
- Not Covered: Labor costs, installation or re-installation costs, or shipping costs. Damage due to improper installation, freezing, electrical issues, misuse, or normal wear and tear on items like seals or O-rings is also not covered.
For complete and specific terms, conditions, and limitations, please refer to the official Hayward warranty documentation included with your product or available on the Hayward website.
Returns & Exchanges
- Return Window: We offer a 14-day free return period from the date of delivery for a full refund or exchange.
- Condition for Return: Product must be unused, in original packaging with all labels and manuals intact.
- Packaging Fee: A 0% fee is applied if returned in the original, unopened packaging. A 10% fee of the item price will be applied if the box is opened or packaging is incomplete.
- Shipping: Customer pays return freight; original shipping cost is non-refundable.
- Process: To initiate a return, please email joy@TampaPoolsAndSpas.com with your order # and model. We’ll reply with an RMA number and packing instructions. Ship the item back within 7 days of RMA issuance. Proof of purchase will be required. Unauthorized returns may not be accepted.
⚠️ Safety & Compliance Notes
Professional Installation Required: This pump must be wired and plumbed by a qualified pool technician or licensed electrician in accordance with all applicable local codes, the National Electrical Code (NEC), and Hayward's installation guidelines to ensure safe operation and validate warranty.
Maintenance Caution: Always shut off all electrical power to the pump at the circuit breaker and relieve all system pressure before servicing, inspecting, clearing the strainer basket, or performing any maintenance on the pump or connected plumbing.
California Proposition 65 Warning:
This product may expose you to chemicals known to the State of California to cause cancer or reproductive harm. For details, visit www.P65Warnings.ca.gov.
💡 Tip: Running at lower speeds for daily filtration and using higher speeds only when necessary for tasks like backwashing or running cleaners can dramatically lower energy use and operational costs.
